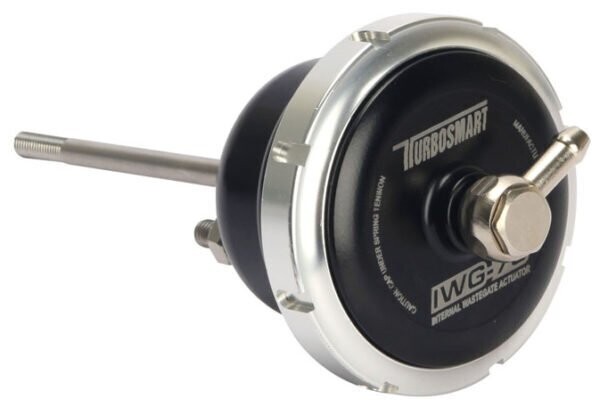

Turbosmart Uprated Actuator IWG75 Ford Focus ST 2.0L Ecoboost 7 PSI
Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.
This Improved ‘working ratio’ is achieved through an increase to the effective surface area of the diaphragm & revisions to the actual springs fitted resulting in greater leverage of the forces the actuator is working against (boost and backpressure) while still being super-responsive.
Upgrading with the same base pressure as factory, you can expect a broader boost & torque curve through peak boost being achieved earlier in the RPM and being held longer, into higher RPM. These improvements can be amplified with higher base pressures, however tuning & recalibration is likely required.
Features Proprietary Silicon Nomex Diaphragm Choice of Springs from 3psi to 26psi (Optional Contact Us For Details) High Grade Billet Aluminum Construction Stainless Steel Rods and Clevis Turbosmart Unique Locking Collar System
Notes The 7psi Version is a direct replacement for the factory item. All other versions will require tuning / calibration of your engines ECU.
This is a bolt on fitment for the factory turbocharger as fitted to the 2.0L EcoBoost motor in Ford Focus MK3 ST250.
***IF YOU NEED A DIFFERENT SPRING PLEASE CHOOSE THAT OPTION AND ADD THE SPRING REQUIRED IN THE COMMENTS***
*Please note images are generic and may not show the exact product*
